四溫控打色機 Dyeing machine

  • - 產品照片 Picture -
  • - 產品特點 Feature-
  • - 技術規格 Specifications -
  • - 運作影片 Video -
  • - 資料下載 Download -

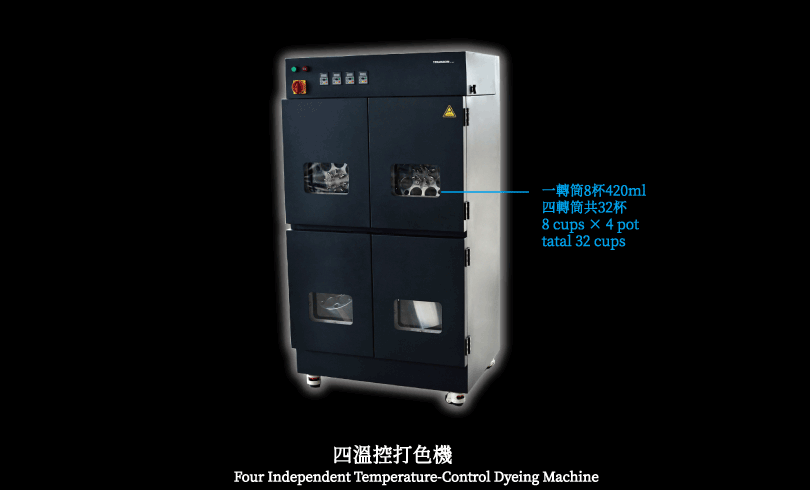

打色機照片



★ 一台等於四台 四組獨立溫控
     4 individual temperature control works in one machine to provide high efficiency.
特大產能



32杯420ml/40杯200ml的超大產能，可同時運行四組不同升溫工藝

The dyeing machine could run 32 cups of sample with 4 kinds of different temperature processes at
the same time, which is the highest productivity dyeing machine in market.


★ 小轉筒設計，轉速快，且少杯打樣時無須整機啟動
     Full 32cups capacity rate is low, so 8cups a vat (drum) design can save emergy.
轉筒直徑小   杯位離轉軸較近，離心力較小，杯內液體可快速脈衝流動，
有效對付易色花布種/組合，轉速可達80轉/分

Dyeing cup position is near to the axis, so the centrifugal force is small.
And the solution in the cup would flow pulses well.
Can run 80 revolutions per minute. 		   转筒


★ 轉筒角度可調--適應面料各種變化
     The vat angle can be adjustabled.
可調角度   可模擬各種打色機旋轉方式轉速、正反轉距皆可調整，藉由調整各項參數調整出與現場染機一致的染色效果

The angle, speed, The normal-reverse rotation rate all can be adjusted. Make the dyeing effect is consistent with the workshop by adjusting all parameters.


★ 整塊鋁合金加工，電熱棒中心加熱，溫度均勻性佳
     Heating by heating rod inside the aluminum barrel.
內加熱式   熱源於中心，由內向外加熱，加熱更均勻、更快；採精密數控車床加工
整塊鋁合金，非翻砂、鋁型材拼接工藝，較一般紅外線外加熱的試樣機溫度更加均勻

不鏽鋼l. Heat the aluminum on the central of barrel to ensure
even and stable heating up process. Discard traditional sand casting but process the aluminum alloy
Container by CNC to ensure accuracy of dimension. Temperature conduction and uniformity will be better.


★ 採中控系統便於監控管理，可選配工業觸控電腦
     Use computer to monitor the temperature of each rotating drum.
軟件畫面

支援7台共用一組電腦，監控所有轉筒並可查詢歷史紀錄確保無違規操作
17吋大電阻式觸控屏，無風扇工業電腦可適應潮濕粉塵的惡劣環境

Multiple machines could be operated in one central control system and show real time sampling status in one screen. All operation will be recorded in system for checking.
We use industrial computer with separated fan and 19" touch screen on machine for smooth user experience and prevent failure caused by humidity and dust in lab.




▲ 回到頁首 ▲


名稱 Name 四溫控打色機
Four Independent
Temperature-control
Dyeing Machine		 現場複樣機
Duplicate Sample
Dyeing Machine
尺寸 L×H×W cm
Machine Dimension		 91 × 71 × 140 74 × 72 × 190
重量 kg
Machine Weight		 500 350
杯數
Capacity		 32cups / 40 cups 8 cups
杯容量
Cup Capacity		 420 ml / 200 ml 450 / 380 / 150 ml
升溫速度
Heating rate		 0-3℃ 0-5℃
降溫速度
Cooling raye		 0-3℃ 0-4℃
控溫範圍
Temp.Range		 室溫-135℃ 室溫-135℃
控溫精度
Temp.Tolerance		 ± 0.5 ℃ ± 0.5 ℃
加熱方式
Heating Method

電熱棒加熱鋁導熱
Heating by heating rod inside the aluminum barrel

 電熱棒加熱鋁導熱
Heating by heating rod inside the aluminum barrel
降溫方式
Cooling Method		 風扇 Fan 風扇 Fan
轉速
Rotating Speed		 0-80 rpm 0-100 rpm
機殼材質
Structure Material		 不鏽鋼噴漆 Stainless steel 不鏽鋼噴漆 Stainless steel
電源 Power 220v
 220v
耗電量/最大功率
Regular power consumption		 6.8 KW/H 1.9 KW/H
操控介面
Control interface

需自備一組電腦；主機需有RS232接口
採用中間監控軟件，一台電腦可監控7台打色機
Need to prepare a computer with RS-232 COM

* 四溫控打色機，可不同規格混搭。420ml一轉筒8杯；200ml一轉筒10杯









catalog   specification   manual
型錄下載   規格書下載   說明書下載   執行檔下載
