半自動粉體稱料機 Powder Weighing

  • --- 產品照片 Picture ---
  • --- 產品特點 Feature ---
  • --- 技術規格 Specifications ---
  • --- 資料下載 Download ---

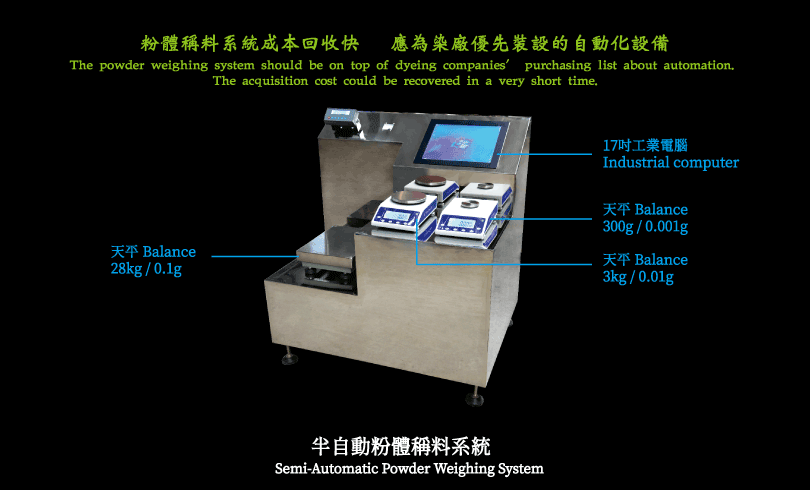

打色機照片



★ 雙天平設計: 28kg/0.1g ; 3kg/0.01g
     2 Balance. Measuring Range: 28kg & 3kg ; Measuring Accuracy: 0.1g & 0.01g
特大產能



軟體根據配方粉重,自動選擇合理精度的天平

System will switch measuring process on appropriate balance based on formula to ensure better accuracy.



★ 配有工業電腦
    With industrial computer
轉筒直徑小   17吋電阻觸控無風扇工業電腦,可應對現場惡劣的粉塵環境

We use industrial computer with separated fan and 17 " touch screen on machine for smooth user experience and prevent failure caused by humidity and dust.



★ 可選購位置指示系統 (雷射定位/燈號指示)
     Optional location guidance system
可調角度

可選購雷射定位器/燈號指示,引導稱料人員取料

User can choose the laser or lamp positioning, that can guide operators to collect correct dyestuff.



★ 可選購開單系統
     Optional billing system
內加熱式   可選購開單系統,掃碼後依系統提示稱料,避免人工抄寫錯誤

User can choose to buy the billing system. Operators weigh the recipe by scanning the code, that can prevent writing mistake.




▲ 回到頁首 ▲


名稱 Name 半自動粉體稱料系統
Semi-Automatic Powder Weighing system
主機尺寸 L×H×W cm 110 × 75 × 116
重量 kg 150
天平數
Balance qty.
2
量程/精度
Measuring range & Accuracy
28kg/0.1g
3kg/0.01g
機殼材質
Structure Material
不鏽鋼 Stainless steel
電源 Power 220v
耗電量/最大功率
Regular power cconsumption
0.5 kw/h
操控介面
Control interface

17吋工業電腦 Industrial computer









catalog   specification   manual
型錄下載   規格書下載   說明書下載   執行檔下載




2020年前機型:

YP33BB09.exe

YP33BB12.exe
